Description

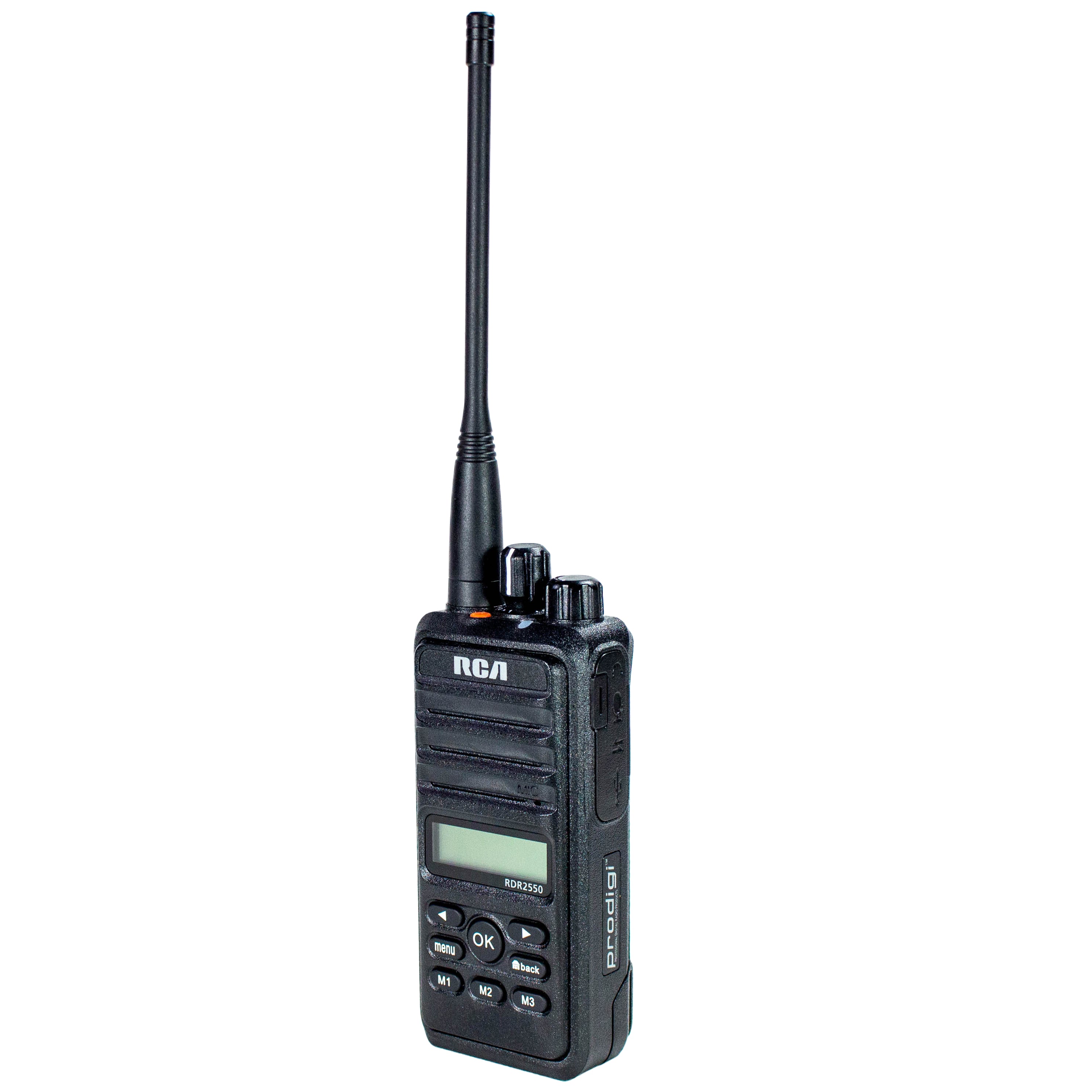

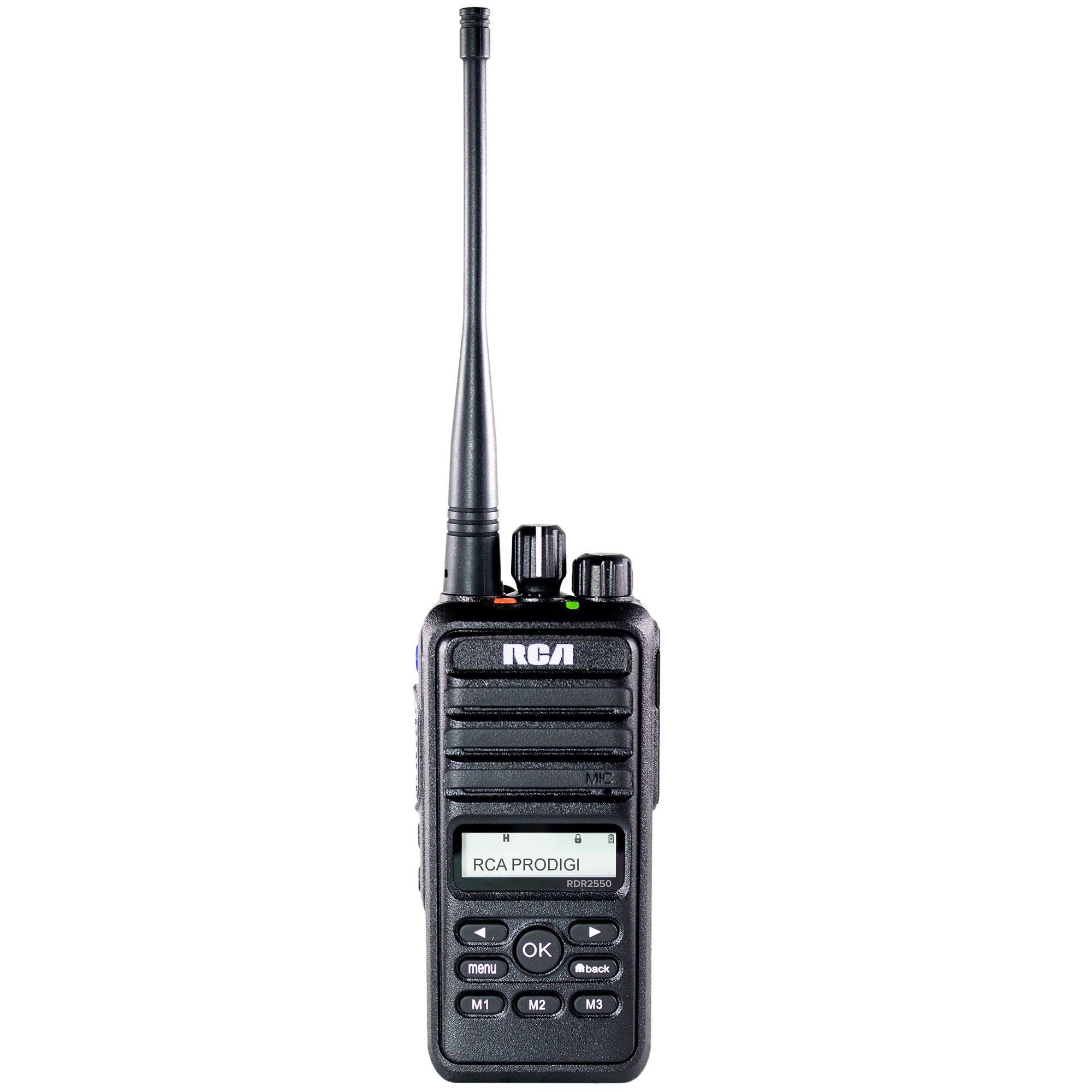

The RCA RDR2550 is a 1000 channel capable handheld unit that is ideal for educational institutions, hospitality, manufacturing facilities and businesses. The RCR2550 transmits using analog or digital UHF or VHF frequencies, and can be programmed to work with other DMR capable digital radios (Motorola, Hytera, etc) in digital mode and most radio brands when operating in analog mode.
Designed to be power efficient, when operated in digital mode, the battery power consumption is lowered up to 40% providing longer operating time which ensures that your employees will stay connected beyond a full working shift. The standard 1800 mAh Lithium Ion battery provides up to 10 hours of operation in Analog mode and up to 14 hours of operation in Digital mode.
The RCR2550 incorporates a backlit LCD display and limited keypad allowing for easier access to private / group call selection and other advanced tasks.
The RCA RDR25x0 series supports the full range of advanced DMR features such as Caller ID, Group and Private Call, Radio Check, Radio Enable/Disable, Emergency and Lone Worker Alerts, Text Messaging, Direct Mode Operation, Digital Encryption and many more.
Designed with X-Sound+HD technology, the RCA RDR25x0 radios provide a loud 1 watt of audio output power while at the same time eliminating background noise and static from voice transmissions resulting in crystal clear voice communications.
The RCA RDR2550 radio comes with a limited 2-year warranty (1 year on battery and accessories).
RCA RDR2550 radio highlights
- Digital and analog transmissions
- 1000 channels
- UHF (400-470 MHz) or VHF (136-174 MHz) frequency band
- 5 watts max transmit power output
- 4 Programmable buttons
- LCD screen w/Limited keypad
- 14 hours battery life and up to 17 with ultra-hi-cap battery in digital mode
- 2-year warranty
Model numbers
Analog & Digital UHF 1000 Channel (Display, Limited Keypad) - RDR2550U
Analog & Digital VHF 1000 Channel (Display, Limited Keypad) - RDR2550V
Supported system technologies
Conventional analog
Conventional digital
Included RCA RDR2550 accessories

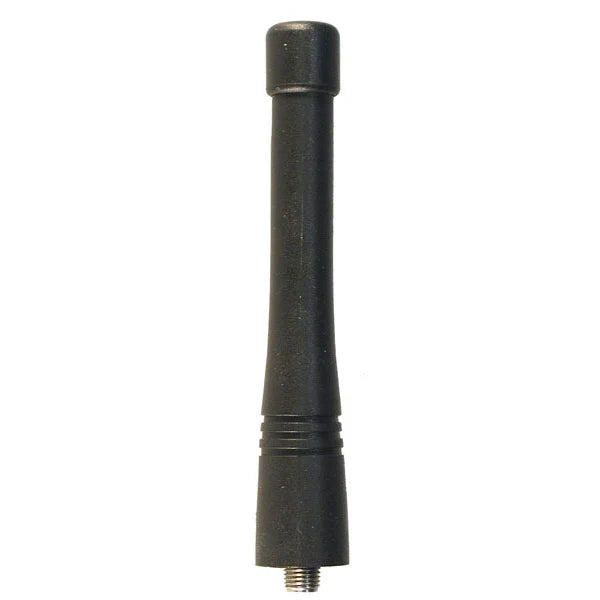

| UHF Whip Antenna |
ANH3500U-W |
| VHF Whip Antenna |
ANH3500V-W |

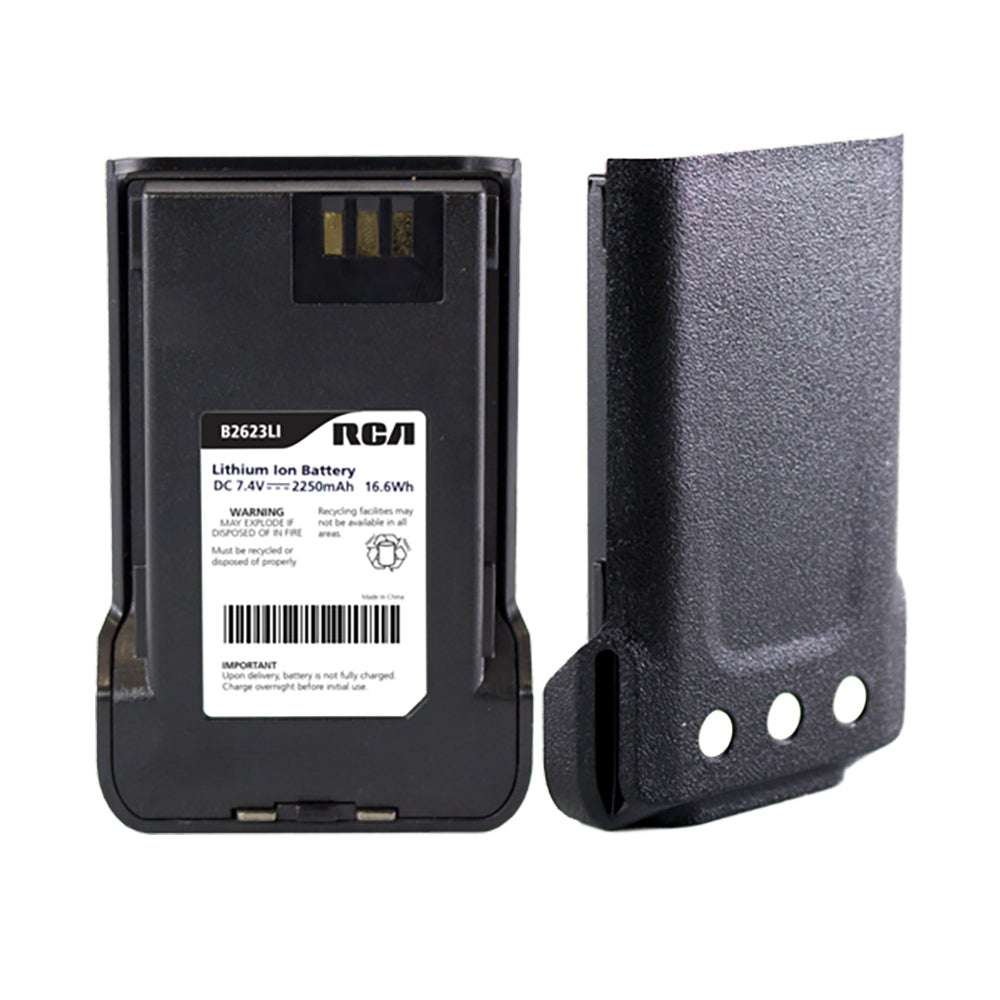

| Upgraded High Capacity Battery | B2623LI |
| Belt Clip |
BC2600 |
| Charger Base |
CH2601 |
| Charger Power Supply | PS2601 |
Resources
- RDR2550 Spec Sheet (PDF file)
- RDR2550 Brochure (PDF file)
Similar digital radios
If you aren't sure if the RDR2550 radio is the right fit, check out our recommended alternatives.
Free RCA RDR2550 radio programming with purchase
RCA RDR2550 radio range
| Flat open terrain |
UHF 4 - 6 miles VHF 5 - 7 miles |
| Suburban areas |
UHF 3 - 5 miles VHF2 - 4 miles |
| Urban areas |
UHF 1 - 3 miles VHF 0.5 - 1 miles |
| Inside buildings |
UHF 25 - 30 floors VHF 10 - 15 floors |
These are estimates based on the RCA RDR2500 radio using standard accessories at full power, many factors affect radio range.
RCA RDR2550 specifications
| Dimensions (H x W x D) | 5.3 x 2.3 x 1.3 in. |
| Weight w/battery | 0.7 lbs. |
| Programmable buttons | 4 buttons |
| User programmable? | No, requires dealer support |
| Durability | IP54 | Mil spec: 810 C,D,E,F,G |
Performance Details
| Frequency range | UHF (400-470 MHz) VHF (136-174 MHz) |
| Max Power output | 5 Watts (UHF/VHF) |
| Coverage area | Adjustable power output for varying coverage |
| Repeater capable | Yes |
| Estimated battery life | 10 hours (Analog, Hi-Cap) 14 hours (Digital, Hi-Cap) 12 hours (Analog, Ultra-Hi-Cap) 17 hours (Digital, Ultra-Hi-Cap) |
| Standard battery | B2618LI Li-ion |
| Battery size | 1800 mAh |
