Description

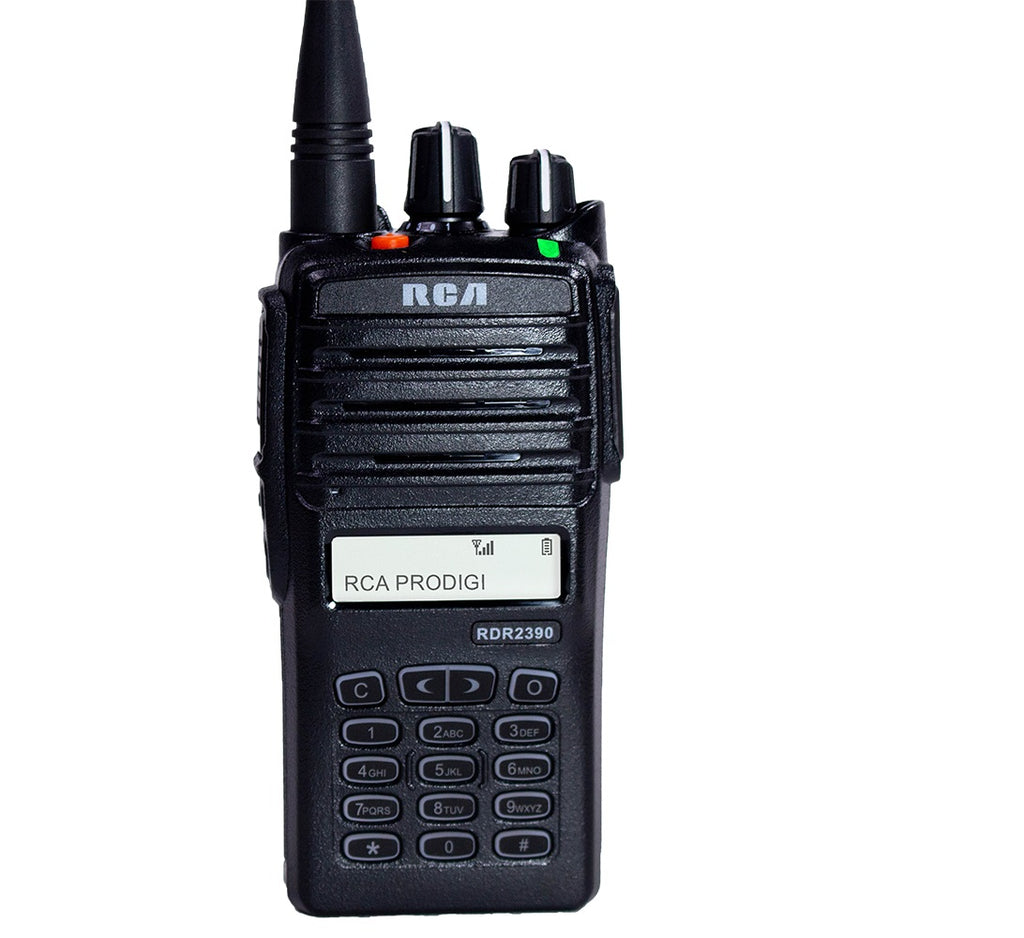

The RCA RDR2390 is a 1024 channel handheld two way radio that is ideal for educational institutions, hospitality, and small to medium sized businesses. The RCR2390 transmits using analog or digital UHF or VHF frequencies and can be programmed to work with other DMR capable digital radios (Motorola, Hytera, etc) in digital mode and most radio brands when operating in analog mode.
The RDR2390 radio completely eliminates background transmission noise and static to deliver crystal clear audio quality in digital operations. Combine that with 40% more efficient power usage, and users have a compelling reason to upgrade from existing analog fleets. Users can expect ~13 hours of power on time with regular usage or up to 17 hours with the optional high-capacity battery upgrade.
The RCA RDR2390 radio comes with a limited 3-year warranty (1 year on battery and accessories).
RCA RDR2390 radio highlights
RCA RDR2390 radio highlights
- Digital and analog transmissions
- 1024 channels
- UHF (400-470 MHz) or VHF (136-174 MHz) frequency band
- 5 watts max transmit power output
- 4 Programmable buttons
- 13 hours battery life and up to 17 with ultra-hi-cap battery in digital mode
- 3 year warranty
Model numbers
RDR2390U - Analog & Digital UHF 1024 Channel
RDR2390V - Analog & Digital VHF 1024 Channel
Supported system technologies
Conventional analog
Conventional digital
Included RCA RDR2390 accessories
| UHF Whip Antenna | ANH200U-W |
| VHF Whip Antenna | ANH200V-W |
| Standard High Capacity Battery |
B2020LI |
| Belt Clip | BC4200 |
| Charger Base | CH2001 |
| Charger Power Supply | PS2001 |
Resources
- RDR2390 Spec Sheet (PDF file)
- RDR2390 Brochure (PDF file)
Free RCA RDR2390 radio programming with purchase
RCA RDR2390 radio range
| Flat open terrain | UHF 4 - 6 miles VHF 5 - 7 miles |
| Suburban areas | UHF 3 - 5 miles VHF2 - 4 miles |
| Urban areas | UHF 1 - 3 miles VHF 0.5 - 1 miles |
| Inside buildings | UHF 25 - 30 floors VHF 10 - 15 floors |
These are estimates based on the RCA RDR2390 radio using standard accessories at full power, many factors affect radio range.
RCA RDR2390 specifications
| Dimensions (H x W x D) | 4.5 x 1.3 x 2.1 in. |
| Weight w/battery | 9.5 oz. |
| Programmable buttons | 3 buttons |
| User programmable? | No, requires dealer support |
| Durability | IP65 | Mil spec: 810 C,D,E,F,G |
Performance Details
| Frequency range | UHF (400-470 MHz) VHF (136-174 MHz) |
| Max Power output | 5 Watts (UHF/VHF) |
| Coverage area | Adjustable power output for varying coverage |
| Repeater capable | Yes |
| Estimated battery life | 9 hours (Analog) 13 hours (Digital) 12 hours (Analog, Hi-Cap) 17 hours (Digital, Hi-Cap) |
| Standard battery | B2020LI Li-ion |
| Battery size | 2,000 mAh |
